Top 6 and Bottom 6 heating zones - Auto control temperature - Multiple zones Reflow Oven.(Model : YS-6600II)
Basic Information:
1. Model:YS-6600II
2. Type:6-Zones Reflow Oven
3. Heating Zones: Top:6 Bottom:6
4. Cooling Zones:Top:1 Bottom:1
5. Heating Method:Top:Air Bottom:Air
6. Transition Structure: Mesh+Chain
Technical features:

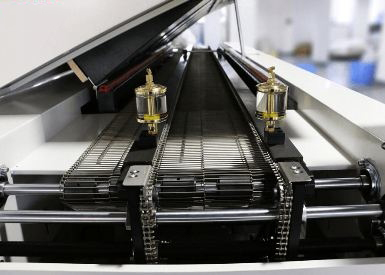

1.Stable Conveyor System
Special stainless mesh is durable and wear-resistant, and does not easy to deform.

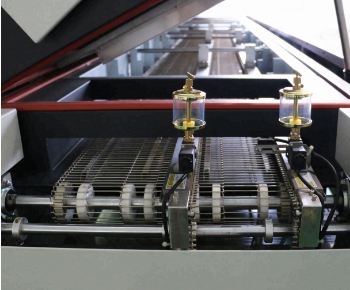

2.Chain lubrication system is applied
3.Reliable Control System
Special SSR solid state relay matched with dedicated radiator improves the heat efficiency greatly and prolongs the lifetime effectively.
PID close loop control & SSR driving(No computer).Intelligent diagnosis with reminders, alarms and reporting.
4.The Heating System
The whole oven is made by porous alumina that can transfer hot air evenly to PCB, and the top cap of oven can be opened completely so that it is easy to clean the oven inside.Using IR and hot air for heating, with high efficiency and low cost. Each heating zone is equipped with an independent air switch to ensure the safety of users.
5.The Cooling System
Equipped with exhaust fan to satisfy the venting of the soldering.
Specification parameters:
| The Parameter of Heating Zone | |
| No. of Heating Zones | Top 6／Bottom 6(Tow motors in both side) |
| Length of Heating Zones | 2400mm |
| Heating method | Up:hot air; bottom: IR |
| No. of Cooling Zones | Up 1 bottom 1 |
| The Parameter of Conveyor Zone | |
| Max.width of PCB | 400mm for mesh-belt |
| Direction of Conveyor | Left→Right(Option:Right→Left) |
| Conveyor Height | 880±20mm |
| PCB Transmission Agent | Mesh |
| Conveyor Speed | 0-1000mm/min |
| The Parameter of Control Zone | |
| Power | 5wire, 3phase 380V 50/60Hz |
| Starting power | 22KW |
| The consumption of working power | Approx.3~5KW |
| Warming Time | Approx.20 mins |
| Temp-Control Range | Indoor temp-300℃ |
| Temp-Control method | PID close loop control & SSR driving(no computer) |
| Temp-Control Accuracy | ±1℃ |
| PCB Temp-Deviation | ±2℃ |
| Abnormal Alarm | Abnormal temp(Extra-high Temp Or Extra-low Temp After Constant Temp) |
| Board dropped alarm | Tower light:yellow-warming, Green-normal, Red-abnormal |
| The Parameter of Machine | |
| Outside Dimension | 3700*800*1350mm |
| Weight | Approx600Kg |
